How do I set up Input reporting with a StarLink LTE dual path Fire communicator?
The LTE dual path communicators come with four supervised inputs that can be wired to a FACP without a DACT to provide four signals without the need for the 9SLE10KHARN Wire Harness.

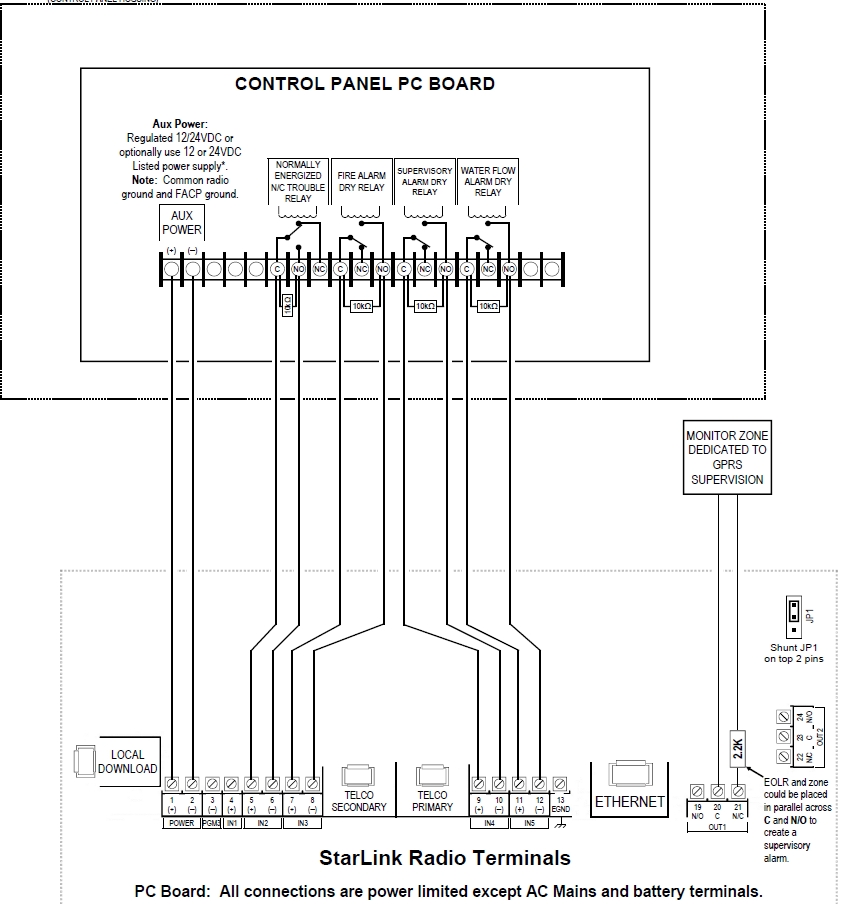

Wire inputs 2-5 to the corresponding relays on the FACP using the supplied 10K EOLRs. A short will send an alarm and open will send a trouble. Wire OUT 1 to a radio trouble zone/point on the FACP.
After the radio is registered, log in to the StarLink Radio Management Center (www.napconoc2.com).
-----------------------------------------------------------
General Tab

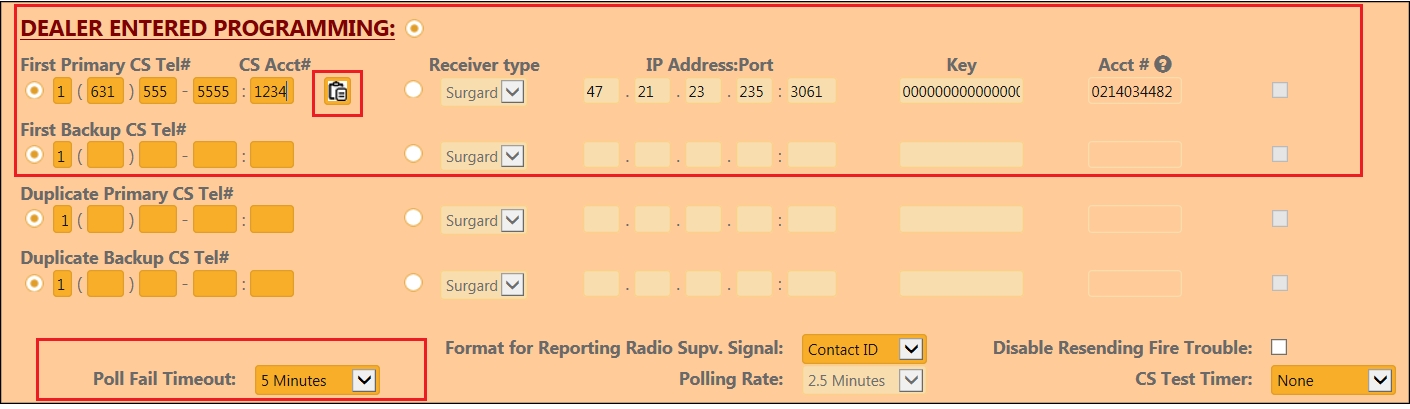

- Click the Edit button, then enable the Dealer Entered Programming radio button.
- Program the central station primary and backup telephone and account numbers or IP receiver information.
- Click the "Notepad" icon (red square in the image below) to enable the inputs to report to the central station.
- Set the Poll Fail Timeout to match the selected plan (200 sec., 5 min., 60 min., 6 hours (dual path) or 24 hours).
Inputs and outputs tab.

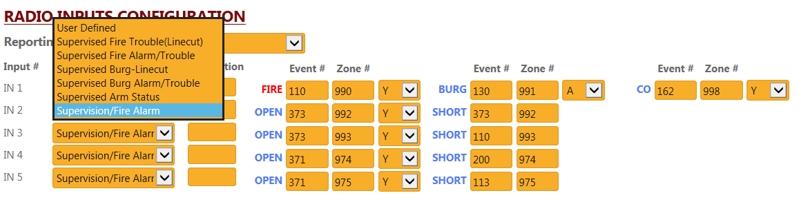

Program inputs 2-5 to Supervision/Fire Alarm.
---------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------

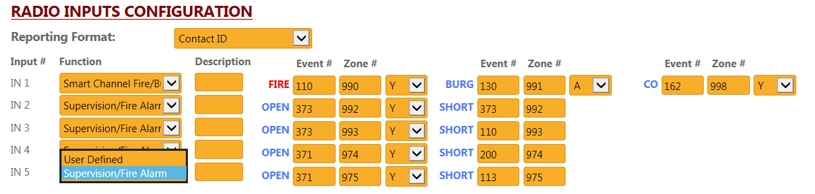

Default Input Programming
- IN2 FACP Trouble
- IN3 Fire Alarm
- IN4 Supervisory
- IN5 WaterFlow
Note: If input 2 or 3 are programmed for another supervised input option, the 9SLE10KHARN must be used.
The reporting codes may be changed as needed for other Fire signals (Low pressure, Fire Pump run/fail, Carbon Monoxide, etc.)
After all changes have been made, be sure to click the Save button.
